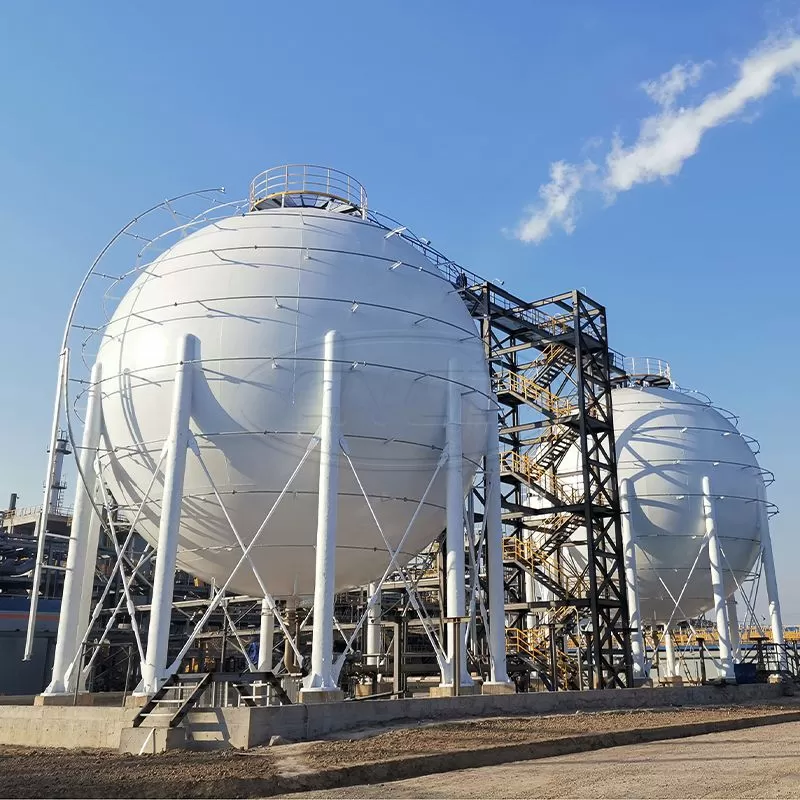

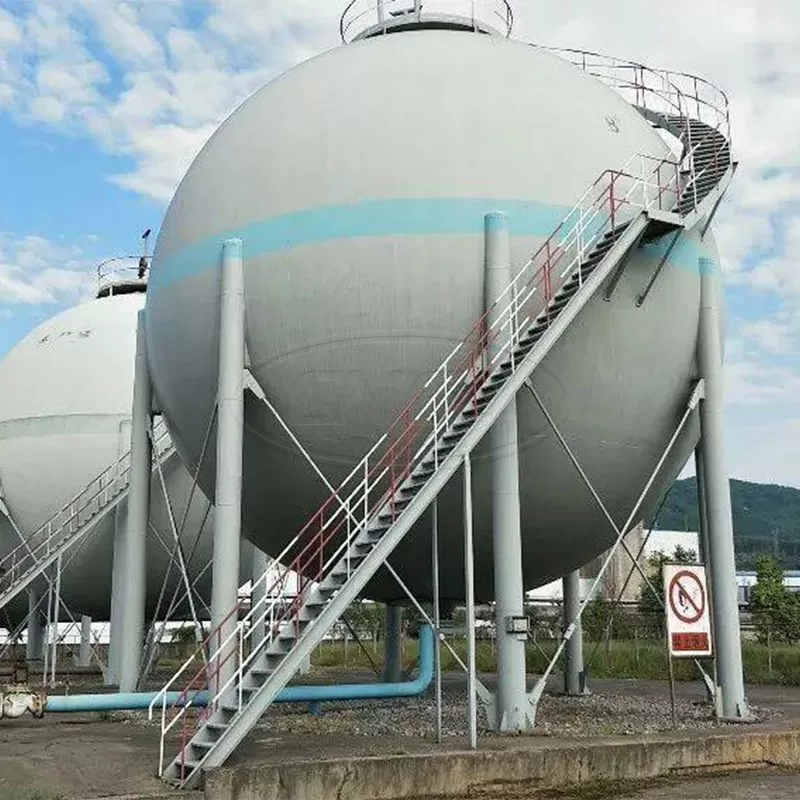

Spherical Storage Tanks is a kind of effective and economical pressure vessel for storing and transporting various gases, liquids and liquefied gases, the shell is spherical.
Details Display
Spherical Storage Tanks are efficient and economical pressure vessels designed to store and transport a wide range of gases, liquids and liquefied gases. Due to its unique spherical structure, it is superior to traditional cylindrical storage tanks in terms of force uniformity, load carrying capacity, material savings and footprint.Chengde, with its rich industry experience and expertise, provides high-quality Spherical Storage Tanks solutions, which are widely used in the chemical, petroleum, oil refining, marine, city gas, food processing, Medical, environmental protection and other industries.
Optimized Structure: Uniform Stress Distribution and Higher Safety
Spherical Storage Tanks, with no sharp corners and no welded areas, can minimize stress concentration when storing pressurized gases and cryogenic liquids, avoiding material fatigue or rupture caused by uneven local stress.
Saving material cost and improving economy
Under the condition of the same wall thickness, Spherical Storage Tanks have the highest pressure-bearing capacity, and their wall thickness is only 1/2 of cylindrical storage tanks of the same diameter and material. Moreover, under the same storage volume, the spherical structure is 30% to 40% smaller than the cylindrical tanks in terms of external surface area, which significantly reduces the amount of steel used and lowers the manufacturing cost.
Smaller footprint, higher land utilization rate
Compared with traditional cylindrical storage tanks, Spherical Storage Tanks require less floor space per unit storage volume, which is especially suitable for industrial land-constrained scenarios, such as oil refineries, chemical plants, city gas storage stations, etc.
Suitable for a wide range of environments: ambient, cryogenic and ultra-cryogenic storage
Spherical Storage Tanks can be used in high-temperature, high-pressure, low-temperature and ultra-low-temperature (below -50°C) environments, and can be equipped with an advanced insulation system to ensure that the stability of the storage object is maintained under different working conditions.
Low maintenance and long life
Due to the greater durability of the spherical structure, it has a longer service life than conventional storage tanks and lower maintenance costs. At the same time, the small surface area of Spherical Storage Tanks reduces the risk of corrosion and extends the life of the equipment.
Spherical Storage Tanks are suitable for storing a wide range of industrial gases, cryogenic liquids and hazardous chemicals in a variety of industries including, but not limited to:
Petrochemical (refineries, chemical plants)
Pharmaceutical industry (liquid oxygen, liquid nitrogen storage)
Energy industry (LPG, LNG, liquid hydrogen storage)
Ship and marine engineering (shipboard liquefied gas storage)
City gas supply (gas companies, gas storage stations)
Environmental industry (wastewater treatment plants, biogas storage)
Agriculture & Food Processing (CO₂ for carbonated beverage production, gas preservation)
Chengde's Spherical Storage Tanks are capable of storing the following high pressure and liquefied gases:
Liquefied Petroleum Gas (LPG)
Anhydrous ammonia (NH₃)
Liquefied Natural Gas (LNG)
Ethylene, Butadiene
Hydrogen (H₂)
Oxygen (O₂)
Nitrogen (N₂)
Argon (Ar)
Naphtha (Naphtha)
Carbon dioxide (CO₂) (dry ice, carbonated beverage production)
Specialized design to meet international standards
Our Spherical Storage Tanks are designed to meet ASME Section VIII, Division 1 & 2 pressure vessel standards and have National Board R certification to ensure the highest level of safety and quality.
High Strength Materials for Corrosion Resistance
Made of high quality low alloy high strength steel, they are able to withstand high pressure, low temperature and harsh environments, and have excellent corrosion resistance, suitable for long time storage of volatile or corrosive media.
Intelligent insulation system to prevent temperature fluctuations
For cryogenic and ultra-low temperature applications, our Spherical Storage Tanks are equipped with an advanced insulation system that effectively minimizes cold loss, reduces operating costs, and prevents the effects of temperature changes in the external environment on the stored material.
EPC turnkey solutions
Chengde not only provides standard Spherical Storage Tanks, but also customized solutions covering the entire process of design, manufacturing, installation, maintenance and overhauling to ensure that our customers receive the highest quality product experience.
Capacity customization: from 1,000 to 75,000 barrels, to meet the storage needs of different sizes.
Pressure customization: different pressure levels (low pressure/high pressure) according to customer needs
Size customization: personalized size design according to project requirements
Branding: Exclusive logo printing and specific packaging solutions are available.
Industry standard customization: Meet customer-specific international or national standards.
Industry Leadership: Years of professional manufacturing experience, serving customers worldwide.
Excellent quality: Strict quality control system, meeting international standards.
Advanced Technology: Independent R&D + Intelligent Manufacturing to ensure high performance.
One-stop service: provide EPC turnkey project, worry-free throughout the whole process.
Global supply chain: rapid response, support for overseas markets
