Download Iso Tank Container

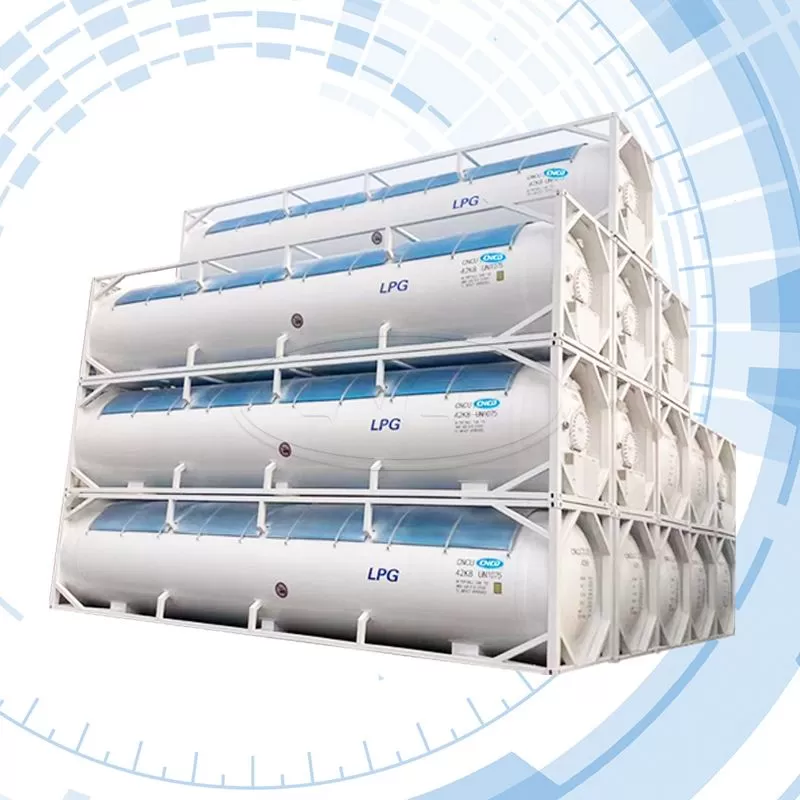

LPG ISO tank container, or liquefied petroleum gas tank container, is a modern logistics solution designed for the safe and efficient transportation of liquefied petroleum gas (LPG). It is made of high-strength special steel, combined with advanced insulation technology and strict safety valve and pressure gauge configuration to ensure gas stability and reduce evaporation loss during long-distance sea and land transport. LPG tank container not only improves transportation efficiency and reduces logistics costs, but also greatly enhances transportation flexibility. It is suitable for the conversion of multiple transportation modes and is an important tool for achieving green, safe and efficient energy circulation. Choosing LPG tank container means choosing a reliable and environmentally friendly new way of energy transportation.
Details Display
Product Introduction:

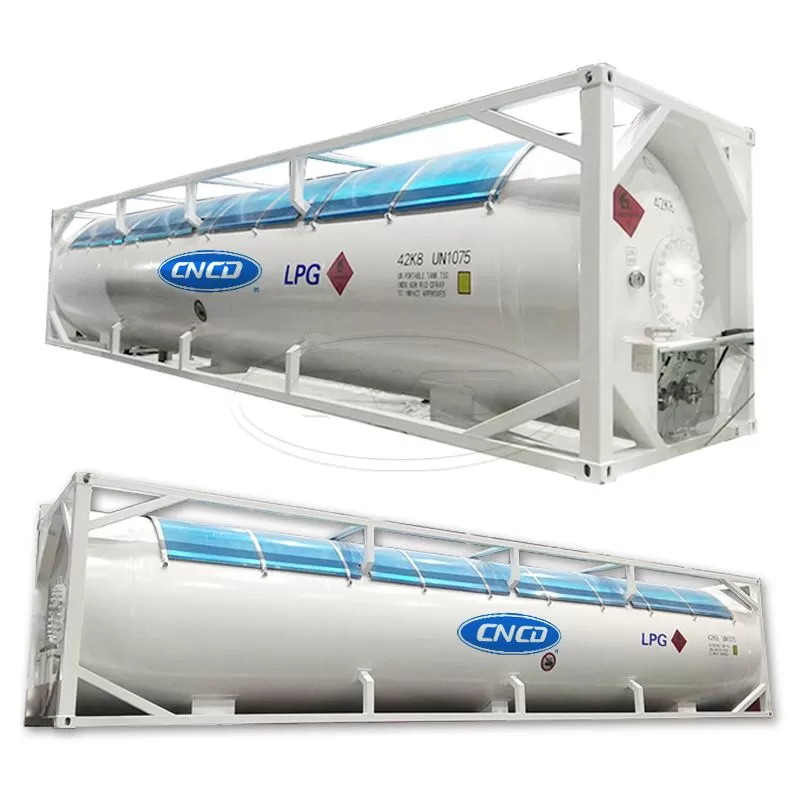

LPG ISO tank container, or liquefied petroleum gas tank container, is a modern logistics solution designed for the safe and efficient transportation of liquefied petroleum gas (LPG). It is made of high-strength special steel, combined with advanced insulation technology and strict safety valve and pressure gauge configuration to ensure gas stability and reduce evaporation loss during long-distance sea and land transport. LPG tank container not only improves transportation efficiency and reduces logistics costs, but also greatly enhances transportation flexibility. It is suitable for the conversion of multiple transportation modes and is an important tool for achieving green, safe and efficient energy circulation. Choosing LPG tank container means choosing a reliable and environmentally friendly new way of energy transportation.
Product advantage:
1.Sea,land and intermodal transportare suitable for all road conditionsand have wide scope of use.
2.It can be used as temporary storage andtransportation equipment for smal pointsupply sites, which'is flexible, reliableand convenient.
3.Keep vacuum and keep good heatpreservation effect.
4.According to customer requirements, the company produces 20 feet,30 feet, 40 feetand other specifications of cryogenic liquid tank containers
| model | 20ft | 40ft |
| Dimension | 6058mm*2438mm*2591mm | 12192mm**2438mm*2591mm |
| Working medium | LPG | |
| Operating pressure (MPa) | 2.2 | 1.8 |
| Empty container weight (kg) | 8000 | 13000 |
| Maximum gross operating weight (kg) | 34000 | 36000 |
| Design temperature(℃) | -40/+50 | |
| Volume(m³) | 24.5 | 51.8 |
Related Products

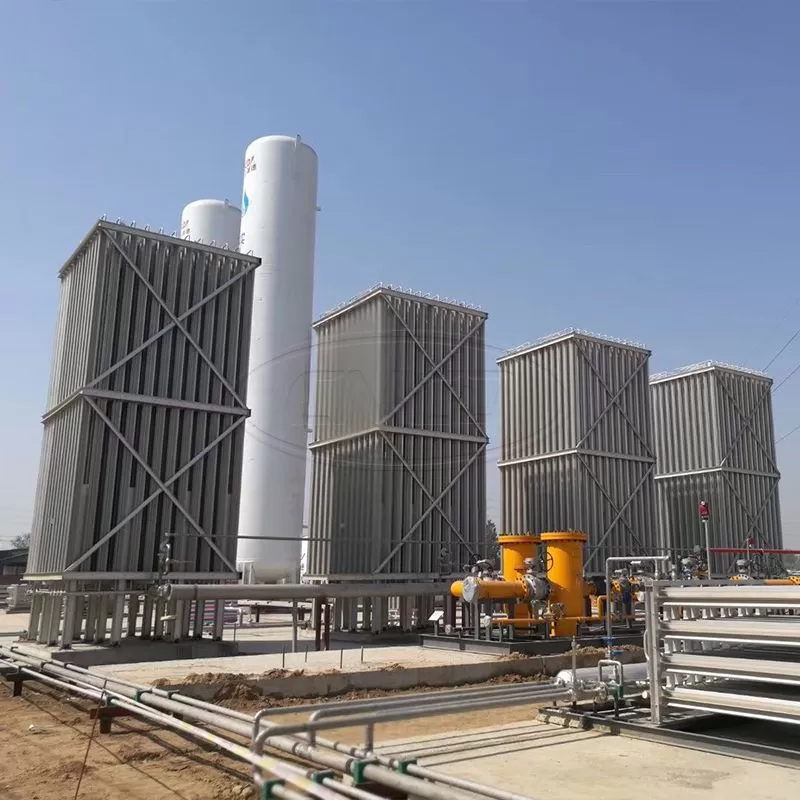

The air separation unit developed by Huayuan Chengde adopts advanced low-pressure process and technology, efficient air compression technology, air purification technology, new structured filling technology, and hydrogen-free argon production technology, eliminating the high energy consumption characteristics of traditional designs.
The company produces various types of Marine LNG fuel storage tanks certified by CCS, and complies with national standards GB/T150, GB18442 and CCS "Marine Application Of Natural Gas Fuel specification", and provides Marine LNG system integration equipment and skid-mounted products.The company can customize special types and special specifications
Cryogenic Liquid Storage Tanks (LCO2)
Liquid carbon dioxide storage tank can be classified into polyurethane foaming insulation tank and the vacuum powder adiabatic tank, with a designed working temperature of minus 40 ℃, Its main material can be OCr18Ni9 or 16MnDR according to the different working condition.

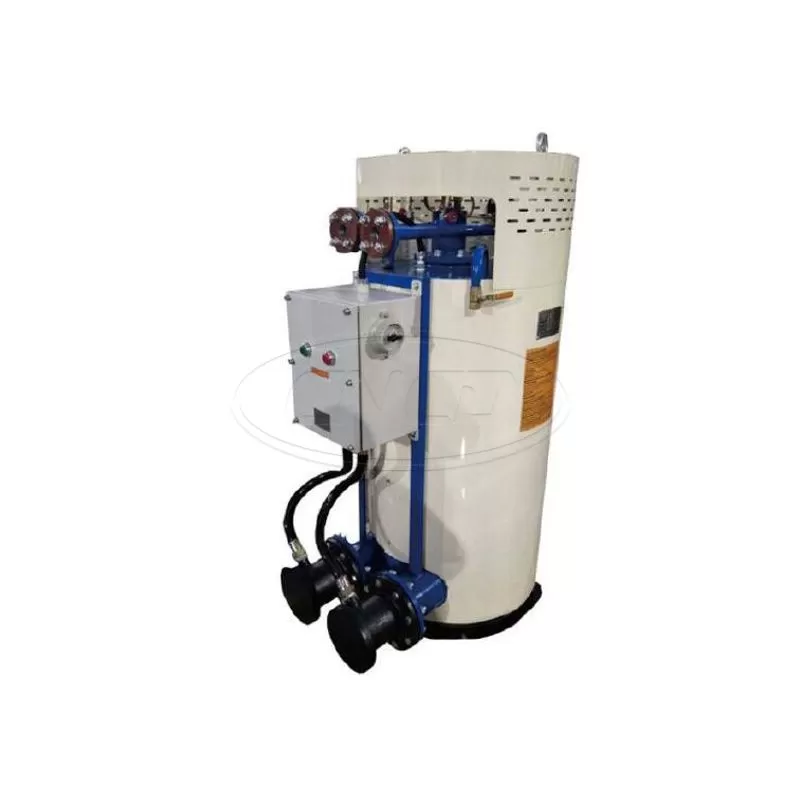

This liquid carbon dioxide pump can be applied in the pressurizing and filling of liquid carbon dioxide.
