How Does a Brewery CO2 Recovery Plant Work?

Breweries around the world face the dual challenge of improving sustainability while maintaining operational efficiency. A CO2 recovery plant is a critical piece of equipment that addresses both these needs by capturing and reusing carbon dioxide (CO2) generated during the fermentation process. This advanced system minimizes environmental impact and reduces the need for external CO2 supply. Let’s dive into how a brewery CO2 recovery plant works and the steps involved in the process.

The Role of CO2 in Brewing

CO2 is an integral part of beer production, contributing to carbonation, enhancing flavor, and ensuring freshness. During fermentation, yeast converts sugars into alcohol and CO2. While some CO2 escapes into the atmosphere as waste, a significant portion can be captured and reused in various stages of the brewing process. This not only saves costs but also aligns with sustainability goals.

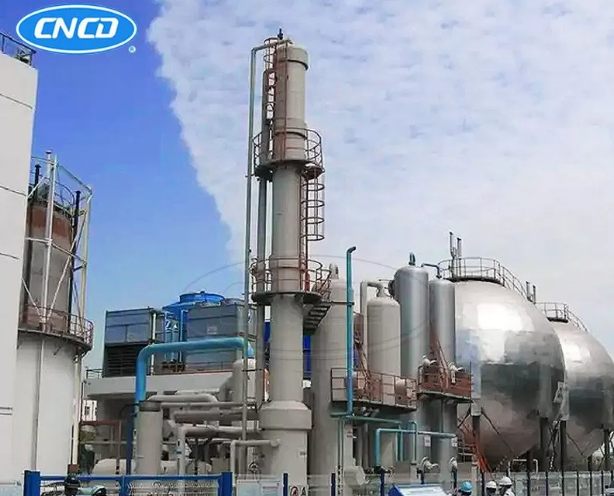

How a Brewery CO2 Recovery Plant Works

A CO2 recovery plant uses advanced technology to capture, purify, and store CO2 for reuse. The process can be broken down into several key stages:

1. CO2 Collection from Fermentation Tanks

The process begins with the collection of CO2 from fermentation tanks. As yeast ferments the wort, it produces CO2 as a byproduct. This CO2 is vented through specially designed pipes and captured by the recovery system. To ensure efficient collection, the tanks are equipped with gas-tight seals that prevent CO2 from escaping into the atmosphere.

2. Preliminary Gas Cleaning

The raw CO2 gas collected contains impurities such as water vapor, volatile organic compounds, and other byproducts of fermentation. These impurities can interfere with the quality of CO2 if not removed. The gas undergoes a preliminary cleaning stage where moisture is separated using dehumidifiers and water traps.

3. Compression

Once cleaned, the CO2 gas is compressed using high-efficiency compressors. Compression reduces the volume of gas, making it easier to handle and transport within the recovery system. The compressors operate at specific pressure levels to ensure that the CO2 remains in an optimal state for subsequent purification.

4. Advanced Purification

The compressed CO2 undergoes an advanced purification process. This stage typically involves:

- Absorption Towers: These remove any remaining volatile impurities and trace contaminants.

- Activated Carbon Filters: These filters eliminate odors and unwanted chemical residues.

- Cryogenic Separation: The CO2 is cooled to extremely low temperatures, causing impurities to solidify and separate. This process ensures that the recovered CO2 meets food-grade quality standards.

5. Liquefaction

After purification, the CO2 is converted into liquid form through a process called liquefaction. This step involves cooling the CO2 to its condensation point under controlled pressure conditions. Liquid CO2 is easier to store and transport compared to its gaseous form, making it ideal for brewery operations.

6. Storage

The liquefied CO2 is transferred to insulated storage tanks designed to maintain its low temperature and prevent evaporation. These tanks are equipped with monitoring systems to ensure that the stored CO2 remains at the desired quality and quantity levels.

7. Reuse in Brewing Operations

The recovered CO2 is now ready for reuse in various stages of the brewing process, such as:

- Carbonating the beer to achieve the desired level of fizz.

- Pressurizing tanks to prevent oxidation during beer transfer.

- Cleaning and sanitizing brewery equipment using CO2 as an alternative to harsh chemicals.

Benefits of Using a Brewery CO2 Recovery Plant

1. Cost Savings

By capturing and reusing CO2, breweries can significantly reduce their reliance on external CO2 suppliers. This translates into substantial cost savings over time.

2. Environmental Sustainability

CO2 recovery plants help breweries minimize greenhouse gas emissions by preventing the release of excess CO2 into the atmosphere. This aligns with global efforts to combat climate change.

3. Improved Operational Efficiency

Having a consistent supply of high-quality CO2 ensures that brewing operations run smoothly without interruptions caused by CO2 shortages.

4. Compliance with Regulations

Many regions have strict environmental regulations that limit CO2 emissions. Installing a CO2 recovery plant helps breweries stay compliant with these laws.

Key Features of Modern CO2 Recovery Plants

- Automated Monitoring Systems: Advanced plants are equipped with automation technology to monitor CO2 levels, pressure, and temperature in real-time.

- Energy Efficiency: Modern designs focus on reducing energy consumption during compression and liquefaction.

- Compact Design: Space-saving layouts ensure that the plant can be easily integrated into existing brewery facilities.

- Food-Grade Compliance: The recovered CO2 meets stringent purity standards for use in consumable products.

Conclusion

A brewery CO2 recovery plant is a game-changer for modern brewing operations. By capturing and reusing CO2, breweries can reduce costs, enhance sustainability, and ensure operational efficiency. As the brewing industry continues to grow, adopting CO2 recovery technology will be crucial for meeting environmental goals and staying competitive in the market.
